Power/Displacement	1.3 HP - 1.0 kW/30 cm3
Max. flow rate/Max. head	150 L/min/36 m
Pump type	Centrifugal
Fuel tank capacity	0.83 L
Weight	5.5 kg

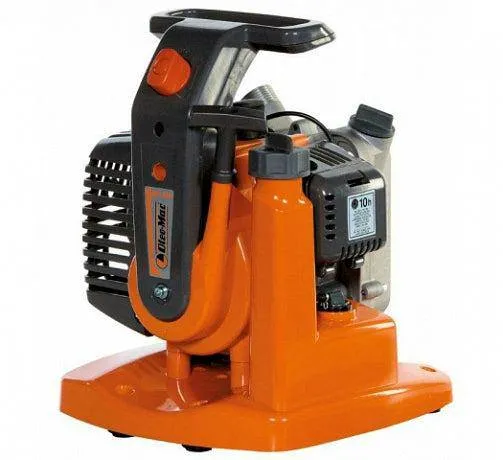

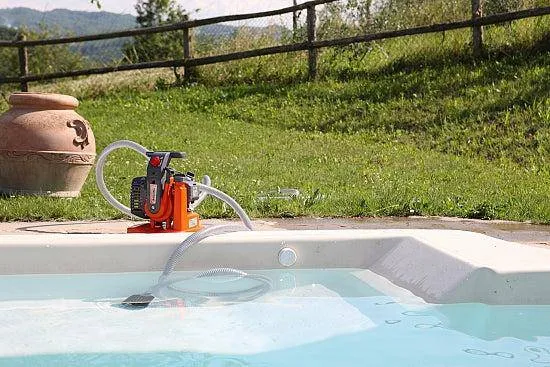

• The new WP 30 - WP 300 self-priming water pumps are ideal for: - small jobs around the home and garden - filling ponds - draining cellars - watering the garden - cleaning swimming pools and for more intensive operations which require continuous use of the pump, such as watering lawns and vegetable plots.
• Its design and compact shape are intended to facilitate transport, positioning and starting of the machine in various usage situations. The water pump incorporates a number of engineering solutions which are designed to make it simple to operate.
• The new, professional-grade pump casing in aluminium is resistant to accidental knocks and corrosion, aff ording long-term durability and exceptional reliability.
• The 30.5 cm3 engine has been designed to respect the environment. The Euro 2 version (mod. WP 300) minimises pollution and cuts emissions, resulting in extended running time between refuelling.

• Emak 2-stroke Euro 2 engine with 30.5 cm3 displacement (also available in the EURO 1 version on the WP 30) produces 1.3 HP power. Easy starting and low fuel consumption are guaranteed by the digital coil (Fig. 1).

• Walbro WT 936 diaphragm carburettor: ensures optimum operation and more stable combustion, even on uneven ground and support surfaces (Fig. 2).

• Muffler with catalytic converter and sound-absorbent material (mod. WP 300 Euro 2) minimises unburned hydrocarbon emissions and helps to reduce the noise level of the machine (Fig.3).

• Aluminium pump casing: corrosion and shock-resistant, assures outstanding long-term durability (Fig.4).

• The new engine and pump casing make it possible to achieve a fl ow rate of 150 litres/minute and a maximum head of 36 metres

• Multifunction control: ON/OFF function and engine speed control integrated into a single knob; clearly visible, practical to operate and positioned at the top of the handgrip, making it easier to grasp (Fig. 5).

• Simple starting: Primer, air lever and fl ow adjustment (engine speed) control are grouped together in one place to facilitate starting and adjustment of the fl ow rate (Fig. 6).

• The ergonomic shape of the fi ller plug and the raised position of the tank inlet facilitate refuelling.

• Transport handle: the ergonomic shape ensures a comfortable grip (even when wearing gloves); due to the position of the handle, which is built into the pump casing, the weight of the pump is evenly distributed during transport, making positioning and storage more convenient (Fig. 7).

• Generously sized support foot: lends stability to the pump and, cushioned by 4 rubber mounts, helps to dampen vibration generated by the engine (Fig. 8).

Available accessories:

A) 1” fi ttings kit (standard issue) p/n 340000002

B) Air fi lter with 1” fi tting (standard issue) p/n 340000001

C) 1” spiral hose, length 4 m (optional) p/n 340000031
